EQUINOX 2 SINGLE PHASE HYBRID

 Buy  PDF sheet  Printable version

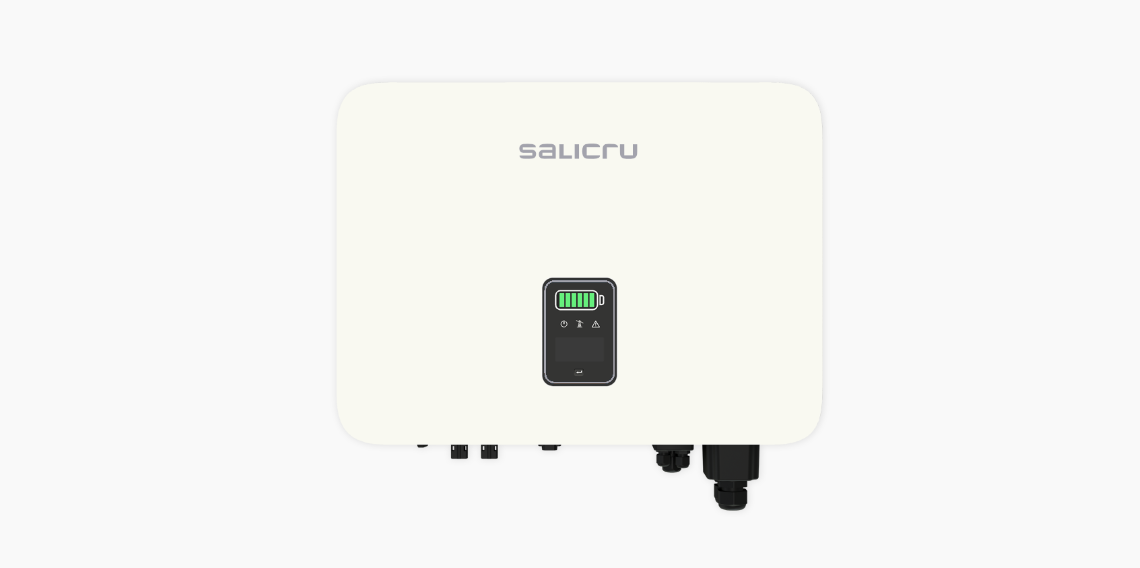

Salicru EQX-SHX.png

New Hybrid inverters Salicru Equinox 2, are the results of the evolution, collaboration and development for technicians working into photovoltaics since 1993.

Salicru Equinox 2 single phases hybrid inverters, have the next features:

High yield:

  • Up to 97,6 % of efficiency.
  • European weighted efficiency of 97%
  • Wide MPPT voltage range
  • Up to 10 % continuous overload capacity.
  • MPPT design with precise MPPT algorithm.

Hibryd functionallity:

  • Working with hight voltage Lithium Batteries (with BMS)
  • Wide battery voltage range
  • Battery Charging/Discharging Conversion Efficiency up to 96,6 %
  • Off-grid functionallity
  • Uninterruptible power supply, switch to off-grid mode within 10ms

  • Up to 30A to meet the demand of higher consumption and energy trading

Safe & Reliable:

  • Hight reliability due to good heat dissipation design
  • Integrated lighting protection for both DC and AC
  • Addaptable to complex power grid
  • High anti-corrosion ability with aluminium alloy die casting technology
  • IP65, wider working temperature and altitude, adapted to a wide installation environments.

Easy to use.

  • Compatc elegant design, light weight, easy to install for one person.
  • Plug and play connector, easy to install.
  • Support a wide range of connections (RS485, WiFi, GPRS, LAN optional)
  • Remote upgrade availble.
  • Fast and easy configuration via APP or OLED display.

  EQX2-3001-HSX EQX2-4002-HSX EQX2-5002-HSX EQX-6002-HSX EQX-8002-HSX
PV Input
Max. PV array power 4800 W 6720 W 8000 W 9600 W 12800 W
Max. input voltage 600 V 600 V 600 V 600 V 600 V
MPP Voltage range 100 - 550 V 100 - 550 V 100 - 550 V 100 - 550 V 100 - 550 V
Rated input voltage 360 V 360 V 360 V 360 V 360 V
Min. Input voltage / initial input voltage 80 / 100 V 80 / 100 V 80 / 100 V 80 / 100 V 80 / 100 V
Max. input current 15 / 15 A 15 / 15 A 15 / 15 A 15 / 15 A 15 / 15 A
Max. short-circuit current per string 20 / 20 A 20 / 20 A 20 / 20 A 20 / 20 A 20 / 20 A
Number of independent MPP inputs / strings per MPP input 2 / 1 2 / 1 2 / 1 2 / 1 2 / 1
Battery
Battery type

Lithium Battery (with BMS)

 Lithium Battery (with BMS) Lithium Battery (with BMS) Lithium Battery (with BMS) Lithium Battery (with BMS)
Battery communication mode CAN / RS485 CAN / RS485 CAN / RS485 CAN / RS485 CAN / RS485
Battery voltage range 100 - 500 V 100 - 500 V 100 - 500 V 100 - 500 V 100 - 500 V
Maximum current (Charge / Discharge) 30 / 30 A 30 / 30 A 30 / 30 A 30 / 30 A 30 / 30 A

Rated Current of Built-in Fuse

 63 A 63 A 63 A 63 A 63 A
Recommended HV battery modules (48V) 3 3 4 4 6
AC Output
Rated power at 230V, 50 Hz 3000 W 4200 W 5000 W 6000 W 8000 W
Max. apparent AC power 3300 W 4600 W 5500 W 6600 W 8000 W
Nominal AC voltage 220 / 230 / 240 V
AC power frequency / range 50-60 Hz / - 5 to +5 Hz
Max. output current 15 A 21 A 25 A 28,7 A 36,3 A
Power factor at rated power 1 1 1 1 1
Power factor at rated power 0.8 overexcited to 0.8 underexcited
AC Output (Backup)
Rated power at 230V, 50 Hz 3000 W 4200 W 5000 W 6000 W 8000 W
Max. apparent AC power 3300 W 4600 W 5500 W 6600 W 8000 W
Nominal AC voltage 220 / 230 / 240 V
AC power frequency / range 50-60 Hz / - 5 to +5 Hz
Max. output current 15 A 21 A 25 A 28,7 A 36,3 A
Power factor at rated power 1 1 1 1 1
Power factor at rated power 0.8 overexcited to 0.8 underexcited
Switching time < 10 ms
Efficiency
Max. Efficiency 97,6 % 97,6 % 97,6 % 97,6 % 97,6 %
European efficiency 97,0 % 97,0 % 97,0 % 97,0 % 97,0 %
Battery conversion efficiency (charge/discharge) 96,6 % / 96,6 % 96,6 % / 96,6 % 96,6 % / 96,6 % 96,6 % / 96,6 % 96,6 % / 96,6 %
Protection Devices
Solar DC reverse polarity protection Yes, integrated
Battery DC reverse polarity protection Yes, integrated
Insultaion resistance protection Yes, integrated
Surge protection Yes, Type II AC / DC
Over-temperature protection Yes, integrated
Residual-current monitoring unit Yes, integrated
Grid monitoring Yes, integrated
AC short-circuit current capability Yes, integrated
AC over-voltage protection Yes, integrated
DC over-voltage protection Yes, integrated
General Data
Dimensions ( W x H x D ) 550 x 410 x 175 mm
Weight 26 Kgr
Operating temperature range -30 to 60 ºC
Noise emission, typical < 25 dB
Self-consumption < 15 W
Topology Transformerless
Natural convection Natural convection
Protection degree IP65
Max. relative humidity (non-condensing) 100 %
Features
Display OLED and leds
Communications WiFi / Lan (Optional)
Warranty

5 Years + 5 years

Optional, warranty extention up to 25 years
Certificates

IEC62109、IEC62116、VDE4105、VDE0126、AS4777、RD1699、NBR16149、IEC61727、IEC60068、IEC61683、EN50549、EN61000



  • Salicru EQX-SHX.png

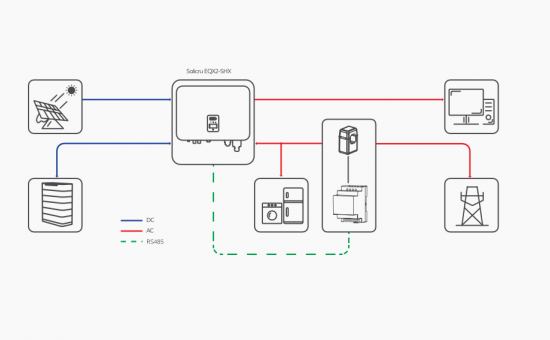

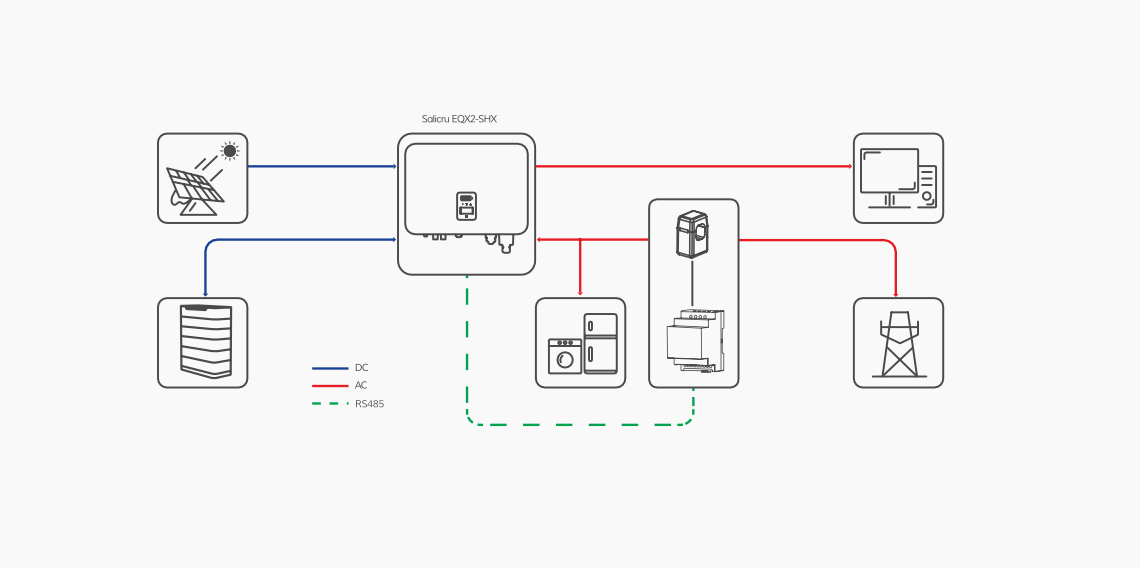

  • Esquema SQX2-SHX.png
