EQUINOX 2 SINGLE PHASE

Salicru Equinox 2 single phase, grid connection inverters
 Buy  PDF sheet  Printable version

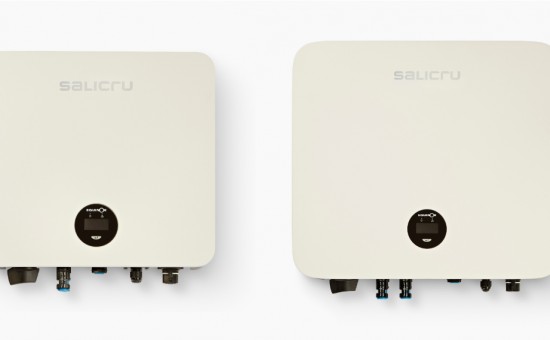

Sallicru Equinox EQX2-Monof.jpg

The new serie of grid connection inverters Salicru Equinox 2, is the results of the evolution, collaboration and development for technicians working into photovoltaics since 1993.

Salicru Equinox 2 single phases inverters, have the next features:

High yield:

  • Up to 97,5 % of efficiency.
  • European weighted efficiency of 97%
  • Wide MPPT voltage range
  • Up to 10 % continuous overload capacity.
  • MPPT design with precise MPPT algorithm.

Safe & Reliable:

  • Hight reliability due to good heat dissipation design
  • Integrated lighting protection for both DC and AC
  • Addaptable to complex power grid
  • High anti-corrosion ability with aluminium alloy die casting technology
  • IP65, wider working temperature and altitude, adapted to a wide installation environments.

Easy to use.

  • Compatc elegant design, light weight, easy to install for one person.
  • Plug and play connector, easy to install.
  • Support a wide range of connections (RS485, WiFi, GPRS, LAN optional)
  • Remote upgrade availble.
  • Fast and easy configuration via APP or OLED display.

  EQX-2001-S EQX-3001-S
DC Input
Max. PV array power 3200 W 4800 W
Max. input voltage 500 V 500 V
MPP Voltage range 80 - 450 V 80 - 450 V
Rated input voltage 360 V 360 V
Min. Input voltage / initial input voltage 55 / 60 V 55 / 60 V
Max. input current 12,5 A 12,5 A
Max. short-circuit current per string 15 A 15 A
Number of independent MPP inputs / strings per MPP input 1 / 1 1 / 1
AC Output
Rated power at 230V, 50 Hz 2000 W 3000 W
Max. apparent AC power 2200 VA 3300 VA
Nominal AC voltage 220 / 230 V 220 / 230 V
AC power frequency / range 50, 60 Hz / - 5 to +5 Hz 50, 60 Hz / - 5 to +5 Hz
Rated power frequency / rated grid voltage 50 Hz / 230 V 50 Hz / 230 V
Max. output current 8,7 A 13 A
Power factor at rated power 1 1
Adjustable power factor 0.8 overexcited to 0.8 underexcited 0.8 overexcited to 0.8 underexcited
Feed-in phases / connection phases 1 / 1  1 / 1
Efficiency
Max. Efficiency 97,5 % 97,5 %
European efficiency 97,0 % 97,0 %
MPPT Efficiency 99,9 % 99,9 %
Protection Devices
DC reverse polarity protection Yes, integrated Yes, integrated
Insultaion resistance protection Yes, integrated Yes, integrated
Surge protection Yes, Type II AC / DC Yes, Type II AC / DC
Over-temperature protection Yes, integrated Yes, integrated
Residual-current monitoring unit Yes, integrated Yes, integrated
Grid monitoring Yes, integrated Yes, integrated
AC short-circuit current capability Yes, integrated Yes, integrated
AC over-voltage protection Yes, integrated Yes, integrated
DC over-voltage protection Yes, integrated Yes, integrated
General Data
Dimensions ( W x H x D ) 327 x 297 x 114 mm 327 x 297 x 114 mm
Weight 6,5 Kgr 6,5 Kgr
Operating temperature range -30 to 60 ºC -30 to 60 ºC
Noise emission, typical < 25 dB < 25 dB
Self-consumption (at night) < 1 W < 1 W
Topology Transformerless Transformerless
Cooling method Natural convection Natural convection
Protection degree IP65  IP65
Max. relative humidity (non-condensing) 100 % 100 %
Features
DC connection / AC connection Multicontact / connector Multicontact / connector
Display OLED and leds OLED and leds
Communications RS485 / WiFi / GPRS / LAN (Optional) RS485 / WiFi / GPRS / LAN (Optional)
Warranty

5 Years + 5 years

Optional, warranty extention up to 25 years
Certificates and approvals

NB/T32004, IEC62109, IEC62116, VDE4105, VDE0126, UTE C15-712-1, AS4777, C10/11, CEI0-21,

RD1699, NBR16149, IEC61727, IEC60068, IEC61683, EN50549, EN61000

  EQX-3002-SX EQX-4002-SX EQX-4602-SX EQX-6002-SX
DC Input
Max. PV array power 4800 W 6720 W 8000 W 9600 W
Max. input voltage 600 V 600 V 600 V 600 V
MPP Voltage range 100 - 550 V 100 - 550 V ​​​​​​​100 - 550 V ​​​​​​​100 - 550 V
Rated input voltage 360 V 360 V 360 V 360 V
Min. Input voltage / initial input voltage 100 / 120 V 100 / 120 V 100 / 120 V 100 / 120 V
Max. input current 15 A / 15 A 15 A / 15 A 15 A / 15 A 15 A / 15 A
Max. short-circuit current per string 15 A / 15 A 15 A / 15 A 15 A / 15 A 15 A / 15 A
Number of independent MPP inputs / strings per MPP input 2 / 1 2 / 1 2 / 1 2 / 1
AC Output
Rated power at 230V, 50 Hz 3000 W 4200 W 4600 W 6000 W
Max. apparent AC power 3300 VA 4600 VA 4600 VA 6600 VA
Nominal AC voltage 220 / 230 V
AC power frequency / range 50, 60 Hz / - 5 to +5 Hz
Rated power frequency / rated grid voltage 50 Hz / 230 V
Max. output current 15 A 21 A 21 A 28,7 A
Power factor at rated power 1 1
Adjustable power factor 0.8 overexcited to 0.8 underexcited
Feed-in phases / connection phases 1 / 1  1 / 1 1 / 1 1 / 1
Efficiency
Max. Efficiency 98,1 % 98,1 % 98,1 % 98,1 %
European efficiency 97,5 % 97,5 % 97,5 % 97,5 %
MPPT Efficiency 99,9 % 99,9 % 99,9 % 99,9 %
Protection Devices
DC reverse polarity protection Yes, integrated
Insultaion resistance protection Yes, integrated
Surge protection Yes, Type II AC / DC
Over-temperature protection Yes, integrated
Residual-current monitoring unit Yes, integrated
Grid monitoring Yes, integrated
AC short-circuit current capability Yes, integrated
AC over-voltage protection Yes, integrated
DC over-voltage protection Yes, integrated
General Data
Dimensions ( W x H x D ) 410 x 360 x 120 mm
Weight 13 Kgr
Operating temperature range -30 to 60 ºC
Noise emission, typical < 25 dB
Self-consumption (at night) < 1 W
Topology Transformerless
Cooling method Natural convection
Protection degree IP65
Max. relative humidity (non-condensing) 100 %
Features
DC connection / AC connection Multicontact / connector
Display OLED and leds
Communications RS485 / WiFi / GPRS / LAN (Optional)
Warranty

5 Years + 5 Years

Optional, warranty extention up to 25 years
Certificates and approvals

NB/T32004, IEC62109, IEC62116, VDE4105, VDE0126, UTE C15-712-1, AS4777, C10/11, CEI0-21,

RD1699, NBR16149, IEC61727, IEC60068, IEC61683, EN50549, EN61000

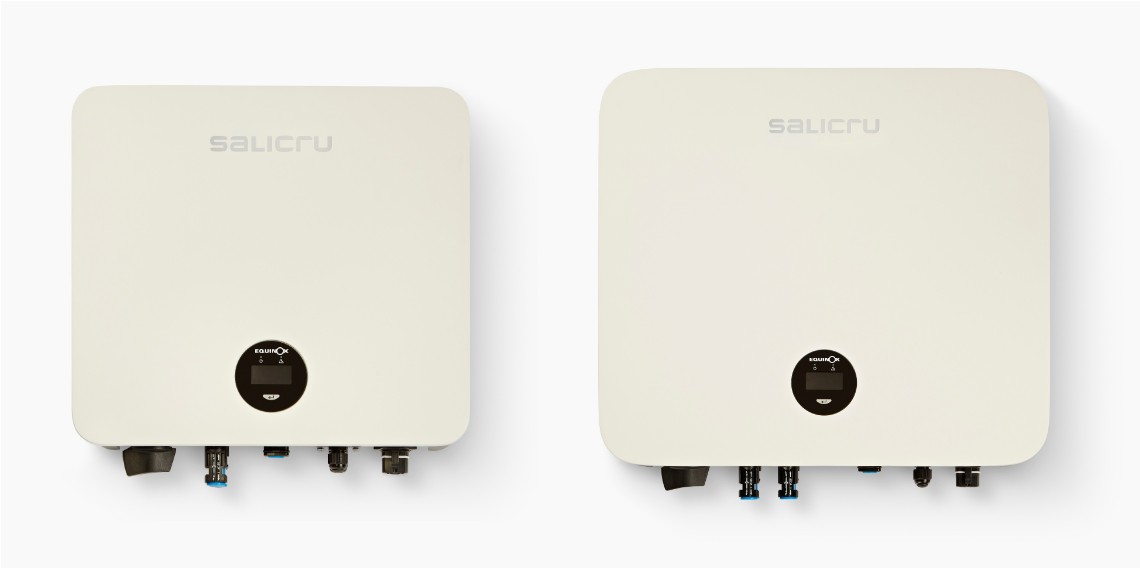

  • Sallicru Equinox EQX2-Monof.jpg

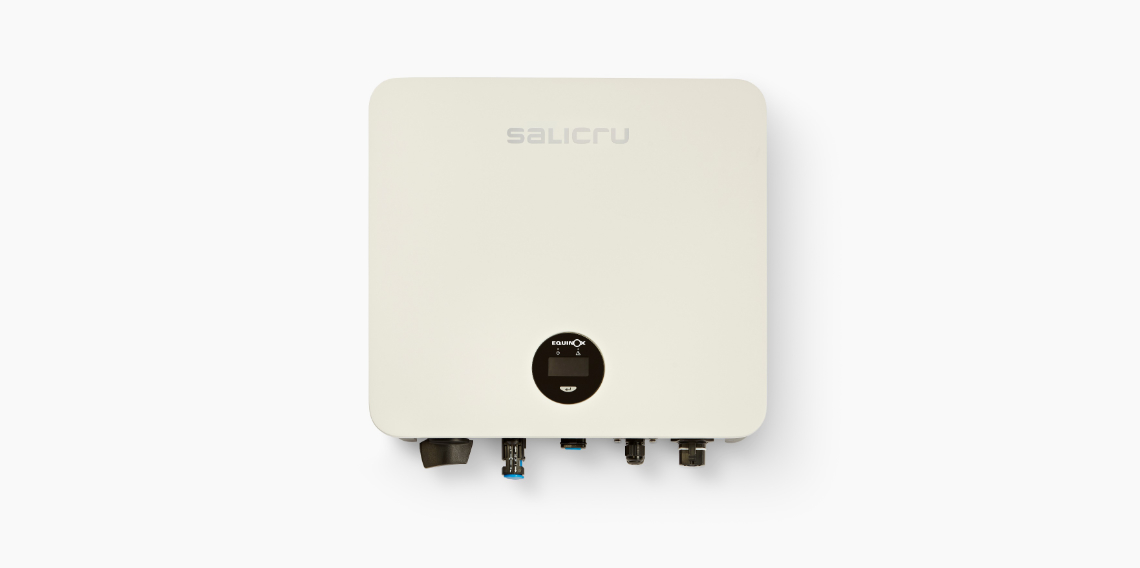

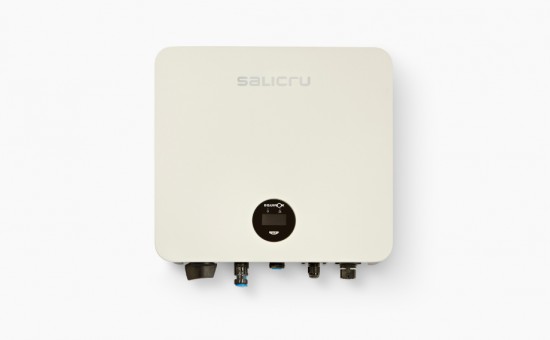

  • Sallicru Equinox EQX2-S.jpg

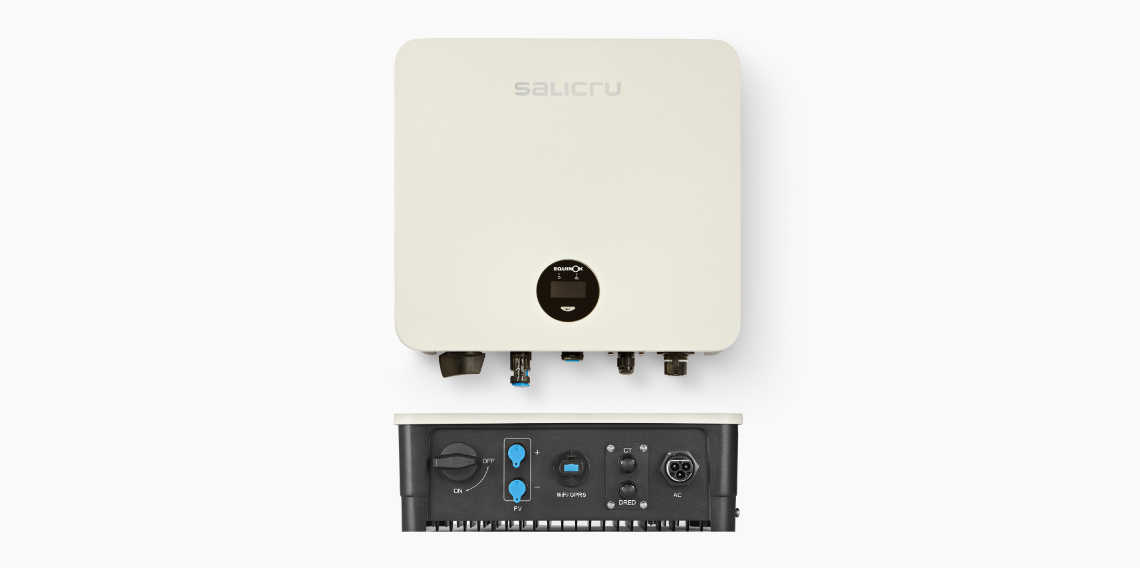

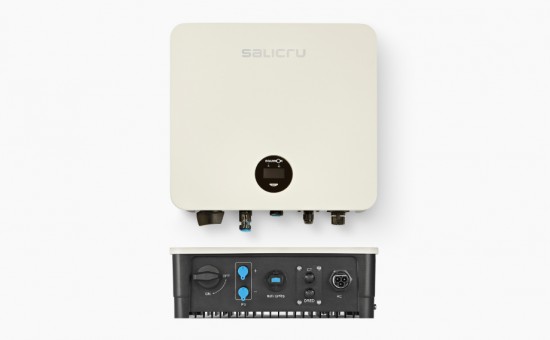

  • Sallicru Equinox EQX2-S detalle.jpg

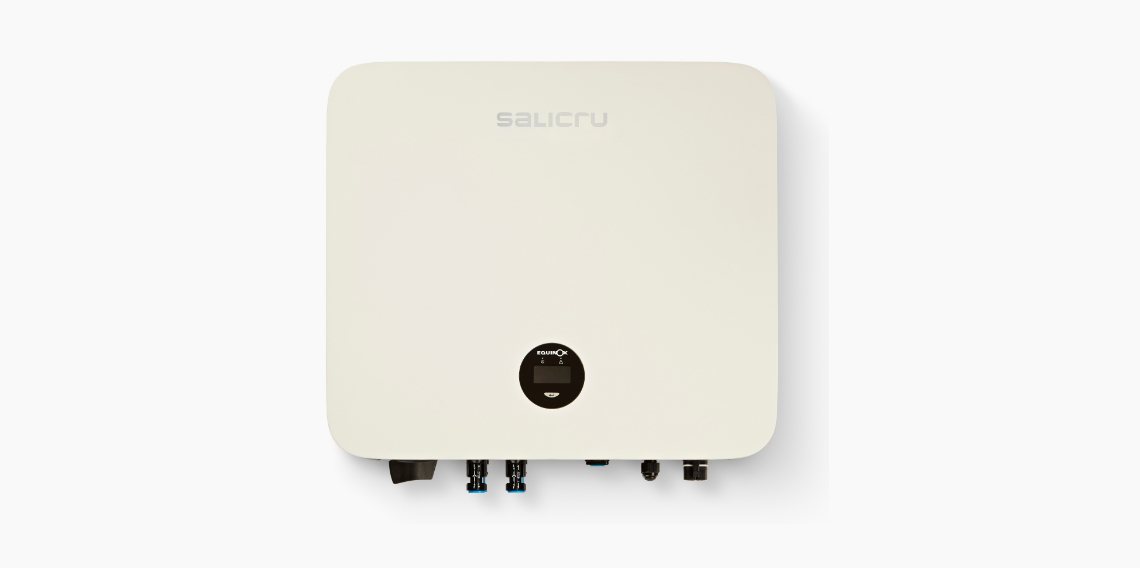

  • Sallicru Equinox EQX2-SX.jpg

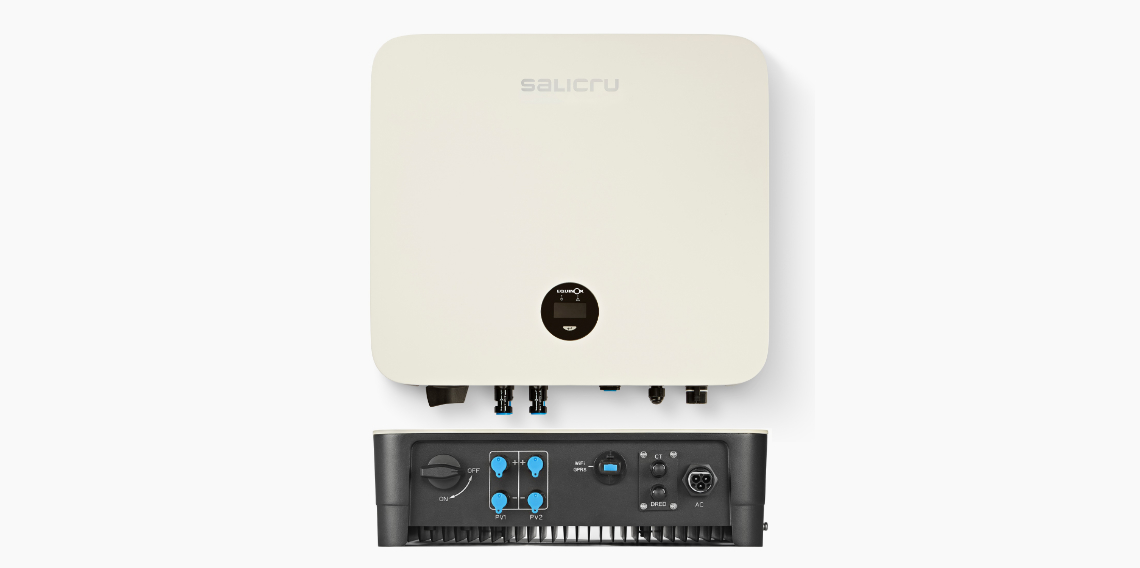

  • Sallicru Equinox EQX2-SX detalle.jpg
