BAE Batteries

PVV BLOCK

 PDF sheet  Printable version

BAE Secura PVV Block solar batteries don't need to be refilled with water during the whole service life. Therefore, this battery type is maintenance -free. This eliminates checking of electrolyte level.

Due to the robuts tubular plate design BAE PVV Block batteries are excellent suited for highest requirements regarding cycling ability and long life-time.

Design
Positive electrode Tubular plate with a woven polyester gauntlet and solid grid in a corrosion-resistant PbSbSnSe-low antimony alloy
Negative electrode Grid plate in a low antimony alloy with long-life expander material
Separation Microporous separator
Electrolyte Sulphuric acid with a density of 1,24 Kg/l at 20 ºC
Container High impact, SAN (Styrol-Acrylic-Nitrile), grey coloured, UL-94 rating: HB
Valve One valve per cell with flame arrestor, opening pressure approx. 120 mbar.
Pole-bushing 100% gas and electrolyte-tight, sliding, plastic coated "Panzerpol"
Kind of protection IP 25 regarding EN 60529, touch protected according to BGV A3



Installation


BAE Secura PVS solar batteries are designed for indoor applications.



Maintenance



Every 6 months: check battery voltage, pilot cell voltages, temperatures

Every 12 months: check connections, record battery voltage, cell voltages and temperatures.



Operational data


Depth of discharge (DOD)

Max. 80% (Ue= 1,91 V/Cell for discharge times > 10 h; 1,74 V/Cell for 1 h)

Deep discharges of more than 80% DOD have to be avoided
Initial charge current Unlimited, the minimal charge current has to be 5A / 100 Ah C10
Cyclic operation charge voltage Restricted from 2,30 V to 2,40 V per cell, operating instruction is to be observed
Float Voltage 2.23 V/Cell
Cycles

2100 (A+B) according IEC 61427 at 40 ºC

>1500 according IEC 60896-21 at 20 ºC
Temperature -20 °C to 45 °C
Self discharge Aprox. 2 % per month at 20 °C



Standards


Test standards IEC 60896-11, IEC 61427
Safety standard EN 50272



Model

Nominal

Capacity

C20 1.80 V/C

Ah.

Nominal

Capacity

C100 1.80 V/C

Ah.

Nominal

Capacity

C120 1.80 V/C

 Ah.

l

b/w

H*

Weight

Filled.

Internal Resistance

mohm.

Shortcircuit

current

kA

12V 1 PVV 70

67

78

79

272

205

385

43,0

17,47

0,73

12V 2 PVV 140

120

137

138

272

205

385

52,0

9,55

1,34

12V 3 PVV 210

182

208

210

380

205

385

74,2

6,74

1,91





















6V 4 PVV 280

244

279

282

272

205

385

51,0

2,66

2,42

6V 5 PVV 350

306

350

354

380

205

385

65,0

2,24

2,87

6V 6 PVV 420

368

421

424

380

205

385

73,8

1,94

3,31





















2V 12 PVV 840

734

838

846

272

205

385

51,0

0,29

7,33

2V 15 PVV 1050

920

1050

1062

380

205

385

65,0

0,24

8,81

2V 18 PVV 1260

1108

1260

1272

380

205

385

73,8

0,21

10,18































BAE PVV Block, connection diagram

Catálogo General 2020

pdf Catalogo-Bornay-0520.pdf ( 21.51 MiB )

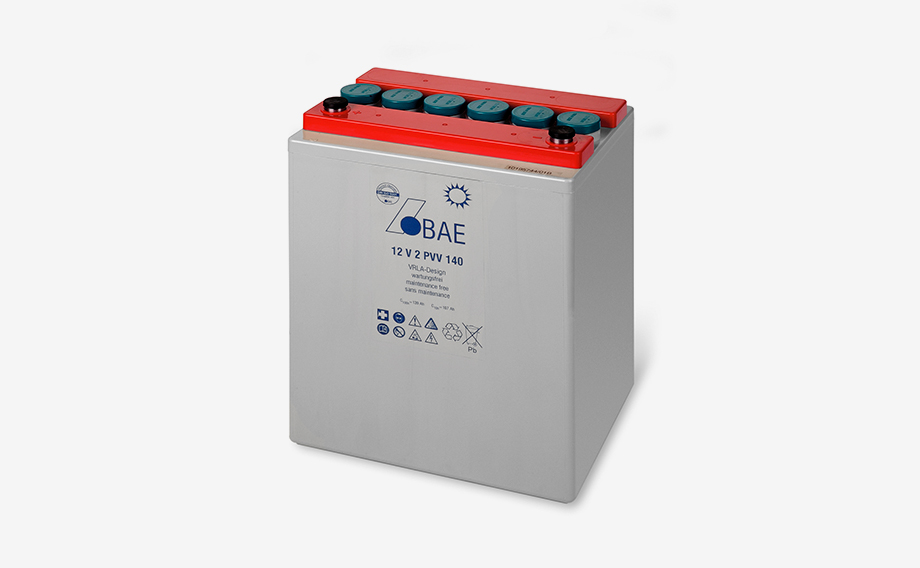

  • Batería-estacionaria-BAE-GEL-PVV-Block.jpg

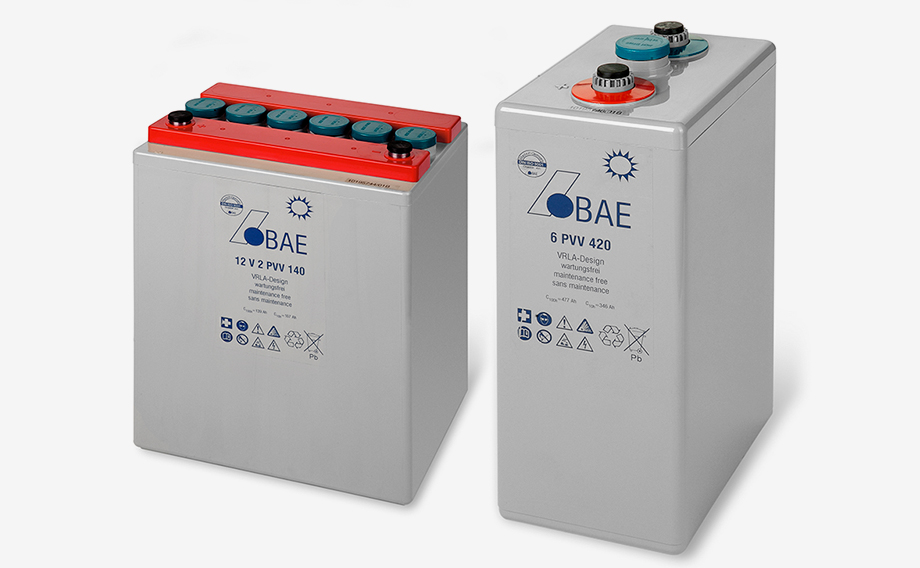

  • Baterías-estacionarias-BAE-GEL-PVV.jpg

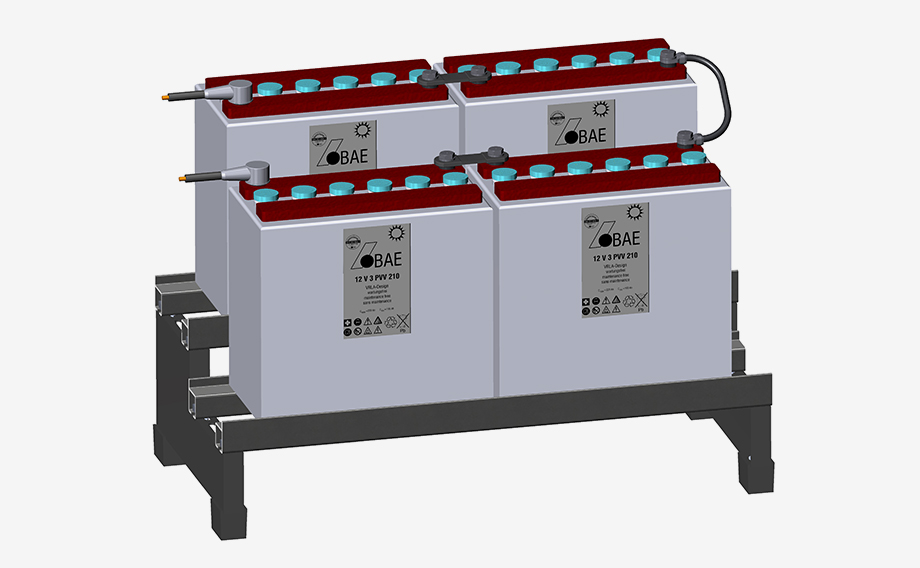

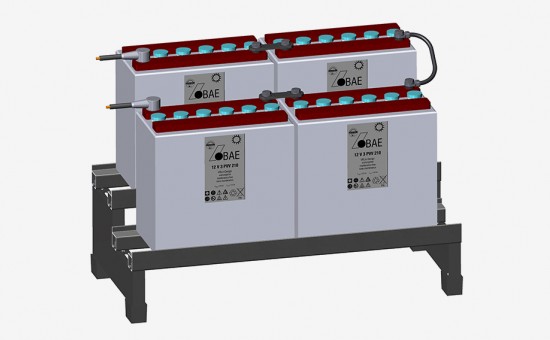

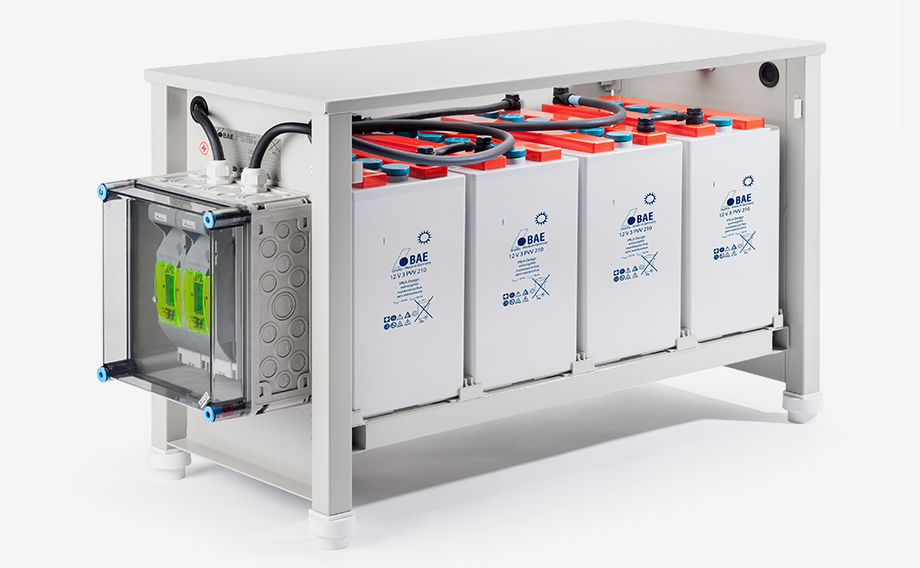

  • Batería-estacionari-BAE-Bancada-block.jpg
  • Bateria-estacionaria-BAE-Sundepot-1.jpg

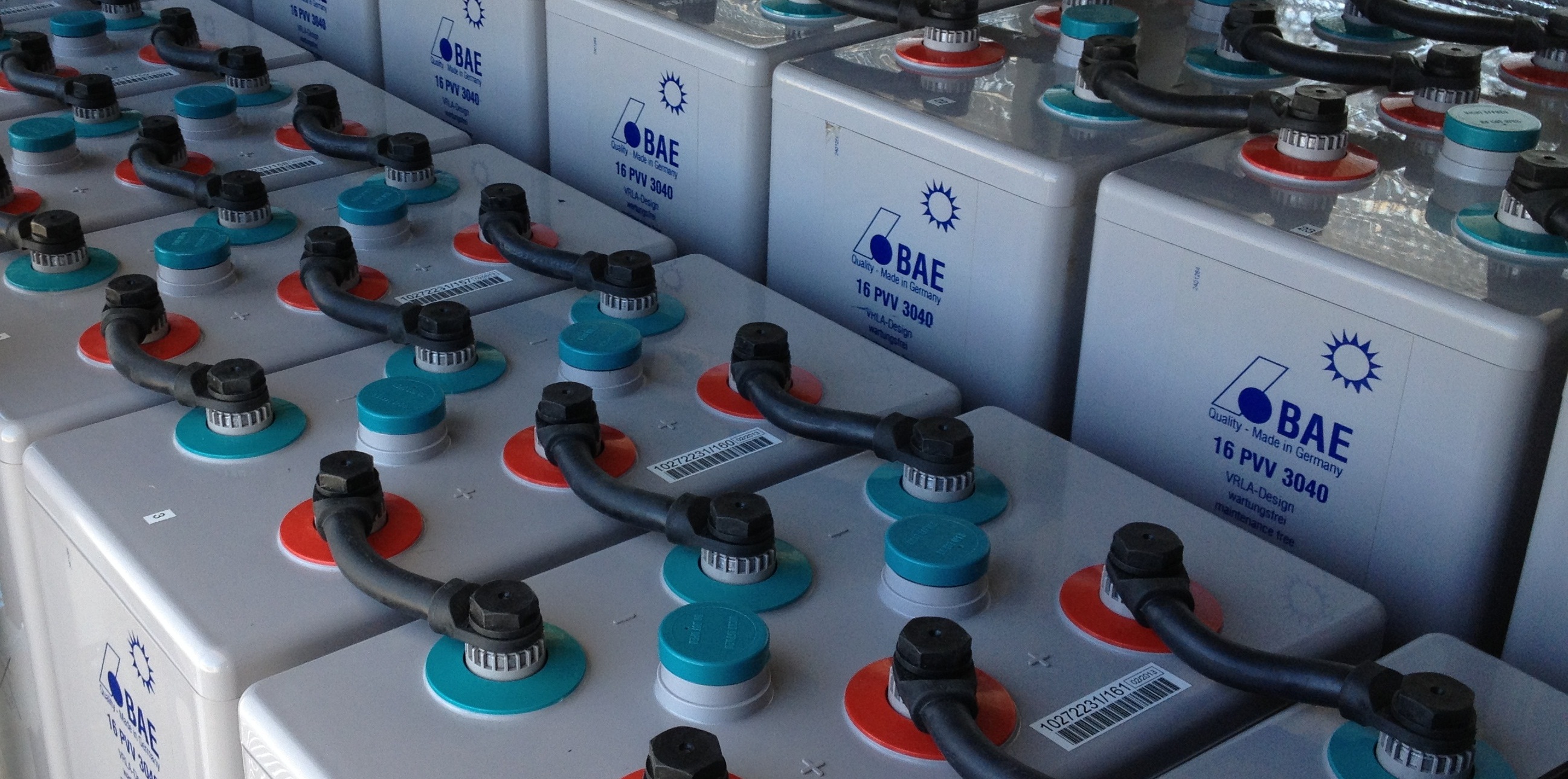

  • Baterías Estacionarias BAE 16 PVV 3040.jpg
